Compact Design: We’ve added this LED projector to our catalog primarily for its compact size—it's the smallest unit we offer. Ideal for tight-space retrofits, especially shallow reflector housings. While its overall length is comparable to a Mini H1 projector, it's actually a few millimeters shorter when installed, thanks to the shaft seating position.
External Driver: Equipped with an external driver, this projector is designed with serviceability in mind. In the rare event of a failure, the driver is easily replaceable without needing to disassemble your entire retrofit.
Cutoff Pattern: Currently available with a standard LHD step-style cutoff only. Clean and precise beam shaping for optimal performance on left-hand drive vehicles.
Light Output: Don’t let the size fool you—this projector delivers serious performance. Compared to a Mini H1 running HID bulbs, the S8 Bi-LED easily outshines it, offering brighter and more focused output.
Color Temperature: The S8 produces a crisp 6000K white light with a distinct blue color band at the cutoff line—sharp and modern in appearance.
Bolt Pattern: This unit uses the standard H1 bolt pattern, making it compatible with most retrofit applications in this class!
Wiring Pinout:
Black - Low Beam Ground (connected to driver)
Red - Low Beam Power (connected to driver)
Black / Black - High Beam Power / High Beam Ground
Compact Design: We’ve added this LED projector to our catalog primarily for its compact size—it's the smallest unit we offer. Ideal for tight-space retrofits, especially shallow reflector housings. While its overall length is comparable to a Mini H1 projector, it's actually a few millimeters shorter when installed, thanks to the shaft seating position.
External Driver: Equipped with an external driver, this projector is designed with serviceability in mind. In the rare event of a failure, the driver is easily replaceable without needing to disassemble your entire retrofit.
Cutoff Pattern: Currently available with a standard LHD step-style cutoff only. Clean and precise beam shaping for optimal performance on left-hand drive vehicles.
Light Output: Don’t let the size fool you—this projector delivers serious performance. Compared to a Mini H1 running HID bulbs, the S8 Bi-LED easily outshines it, offering brighter and more focused output.
Color Temperature: The S8 produces a crisp 6000K white light with a distinct blue color band at the cutoff line—sharp and modern in appearance.
Bolt Pattern: This unit uses the standard H1 bolt pattern, making it compatible with most retrofit applications in this class!
Wiring: Please note that these units come with 4 bare wire leads. One power and ground for each of the low and high beam inputs. We offer pre-attached 9006 and 9005 inputs for easier hook up. Single filament applications can use a direct connection to factory low beam plug with a high beam splitter. Dual filament applications will require a MotoControl wiring harness to make this unit plug and play or add the pre-pinned H4 or H13 option when adding to your cart. We include a diode to keep your low beam on when high beam is activated.

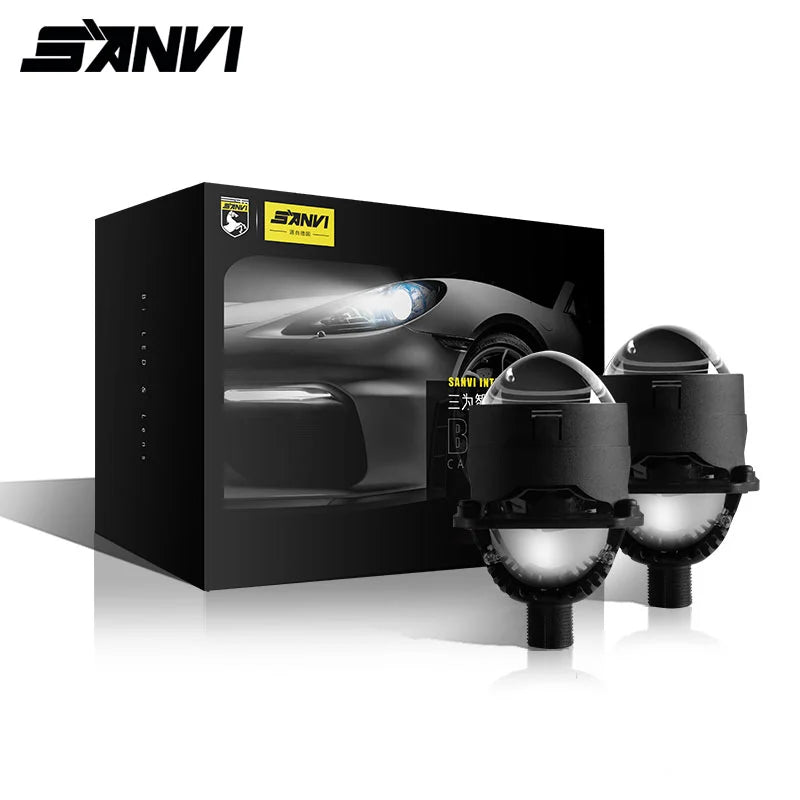

What's Included: 2x Sanvi S8 6000K Bi-LED Projectors (LHD)
Warranty: 1 Years
Tech Specs: Depth: 127mm Width: 80mm Height: 80mm
Wiring Pinout:
Black - Low Beam Ground (connected to driver)
Red - Low Beam Power (connected to driver)
Black / Black - High Beam Power / High Beam Ground
