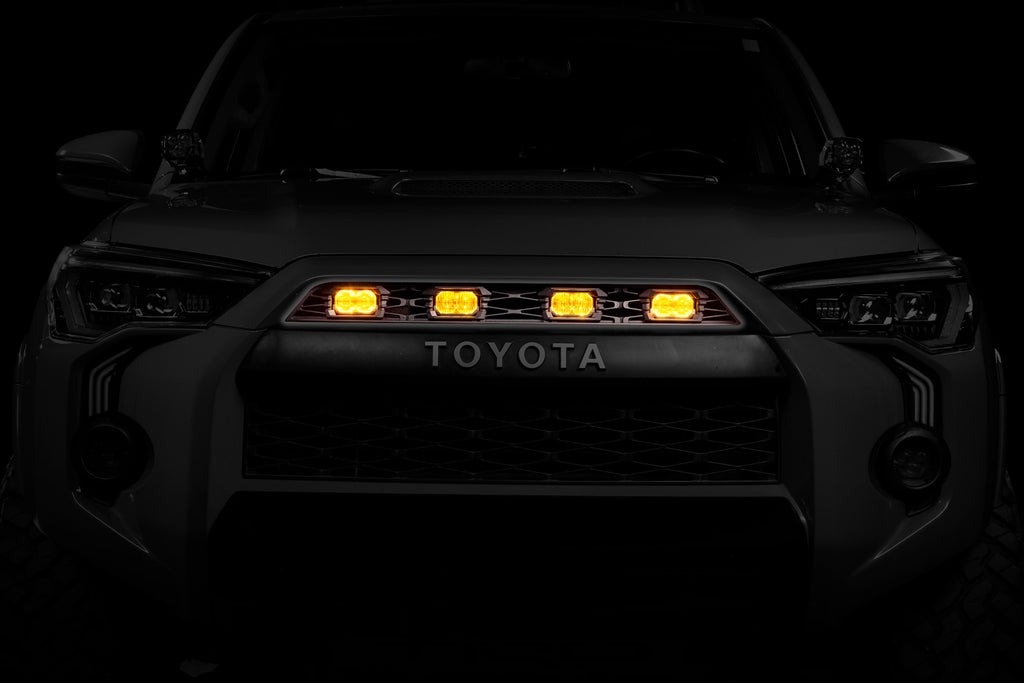

XBG LED Grille: 14-24 Toyota 4Runner

High Vis Backlighting: Some "raptor" lights can cheapen the look of your 4Runner, but not with this grille replacement! This mesh grille replacement is packed with four 2Banger pods equipped with dual intensity amber backlighting. During the day, the CREE XP-E2 LEDs provide an intense backlight flooding inside the pod, and with the included wiring, this backlight dims via the parking light circuit to act as glare-free nighttime marker lights.Direct Swap: Morimoto engineers relentlessly designed the grille insert to be a 1:1 swap of the stock grille for a simple remove-and-replace process. The same durable material is used. The factory grille hardware is carried over. For 2020-2024 model years, there is an included center support bracket and spacers to ensure everything lines up just like stock (the mandated radar required some minor changes behind the scenes).Plug and Play: The fifth-gen 4Runner had three different headlight types, and the included wiring is compatible with all three versions. The grille backlighting is powered by the included fuse tap and is also plug and play with the popular new XB Evo headlights. The provided harness intercepts the headlight's parking light connection with OE grade connections for a quick setup. The main beam for the pods can be triggered by either the included push-button switch or via an upfitter switch setup. Review the installation guide for more information.Useful Output: A combination of yellow SAE Wide and Combo pods provide a helpful distribution of light output on the trails. The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The oval hot spot and spread at beam center has been perfectly tuned to produce an ideal flood beam. The SAE Wide beam optics feature dual axis control: 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper cutoff line and vertical gradient easily pass the latest SAE F regulation for safe and legal use as a fog light on public roads. The grille allows for 6 degrees +/- for fine tuning the aim.Shaved Fascia Cover: For the maximum in cleanliness, no emblem is required. There are no emblem-centering dimples like both the OEM part and all other aftermarket options. If you do want to add the OE Toyota emblem, using the standard double-sided foam tape is all that's needed. The cover is molded ABS plastic and is painted with a UV-stable matte black finish.

Tech Specs

• Intensity: 17,000 Cd (170lux @ 10m)
• Peak Luminosity (raw): 3,600lm
• Current: 4.0A @ 13.5V DC
• Color: 2400K
• Light Source (per pod): 2x Nichia NCSW131F, 4x CREE XP-E2 PC Amber (Backlight)
• Material: ABS Plastic (Grille Insert), Painted ABS Plastic (Fascia Cover), Powdercoated Aluminum (Center Support Bracket), Makrolon LED PC (Pod Lens), Powdercoated Die Cast Aluminum (Pod Housing), Stainless Steel Hardware

What's Included

• Grille: 1x Mesh Grille Insert
• Fascia Cover: 1x Fascia Cover
• Light Pods: 2x Backlit NCS SAE Wide Yellow 2Banger pods, 2x Backlit NCS Combo Yellow 2Banger pods
• Hardware: 1x 20-24 Center Support Bracket, 4x 20-24 Grille Spacers, Hardware Kit
• Wiring: 1x Side Marker Harness, 1x Fuse Tap, 1x Fuse Tap Splitter, 1x Grille Harness, 1x Relay Harness (BAF000H)
• Warranty: Lifetime Limited

General Compatibility Notes

• Toyota 4Runner: 2014-2024 (all trim levels: SR5, Limited, Nightshade, Trail, TRD Sport, TRD Off Road, TRD Pro)
• Replaces Toyota Part Numbers: PZ323-35056, PZ327-35053, 52701-35010, 53101-35080

What is your shipping cutoff time?

Cutoff time is 1pm EST. Assuming we have all your parts in stock, the order should ship the same day. If you need a product by a specific date, please call us to find out if its possible to meet your deadline before ordering. Please be aware that there may be discrepancies with shipping calculators or “in stock” status of a product.

Will I receive a tracking number?

Of course! As soon as your order is shipped you will receive a tracking notification through email. You can also always log into your account and check the tracking information on the order.

Is shipping free?

Orders over $99 qualify for free shipping within the contiguous  United States. *Services are excluded from free shipping. We will chose the most economic method. If you need a product as quickly as possible, always best to chose an expedited shipping option.

Return Window

We allow up to 90 days from the original purchase date to return your item for an exchange or store credit. If you wish to return the product for a refund, we allow up to 45 days from the original purchase date.

Shipping

Customers are responsible for return shipping costs, unless of course we made an error when we shipped out the order. Please contact us if an error was made, we can send over a return label to the email address on file to begin the exchange process.

Refunds/Store Credit

Please be advised that any free shipping promotions used on the original order will be forfeited if the order is returned and the original shipping costs (paid or unpaid) will also be deducted from the refundable amount.  Refunds can only be processed to the original payment method. Store credit will be sent through an email gift card, which you can apply to your next order with us.

Our standard restocking fee structure is outlined below. Please refer to our exchange and refund policies for important timelines.

Tier 1: Perfect condition. (Unopened & like-new) = 90% refund or 100% store credit.
Tier 2: Re-conditionable. (Packaging opened or damaged) = 80% refund or 90% store credit.
Tier 3: Inability to restock. (Product & packaging both damaged) = 70% refund or 80% store credit.

Exclusions

If the part has been installed, and shows signs of use, we are unable to take the product back for an exchange or refund. Original Osram and Philips bulbs cannot be returned if the authenticity seal has been broken. Any special ordered item, such as a custom headlight conversion, is not eligible to be returned.

HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country.

Note: This usage regulation is not unique to products found on our website. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA. To find street legal LED headlight assemblies, click HERE.
