A fifth-gen 4Runner first! Four of the popular Morimoto 2Bangers mounted cleanly in a new mesh grille insert and fascia cover, easily wired up with the included plug and play harness. Compatible with all trim levels of the 2014-2024 Toyota 4Runner including the Limited / Nightshade / TRD Sport style bumper! But wait--there's more: these 2Bangers are equipped with dual-intensity amber backlighting as well! The backlight intensity far outshines any cheapo "raptor" style grille lights, and because of that, offer a dim mode for nighttime driving. The main beam of the pods can be triggered with the included push-button switch or via an upfitter switch setup. The kit comes with two yellow Combo and two yellow SAE Wide optics for the best visibility. The included fascia cover looks like the OE TRD Pro style cover, except the added feature of no emblem dimples! FEATURES & BENEFITS • High Vis Backlighting: Integrated dual-intensity amber backlighting for DRL and marker light modes. • Direct Swap: Carefully designed to replace the stock grille with zero modifications. • Plug and Play: Included wiring makes for a very easy installation on all trim levels. • Useful Output: The four included pods in Combo and SAE Wide mode provide useful off-road visibility with a clean look. • Shaved Fascia Cover: Unique to this grille setup, the fascia cover has no emblem dimples for a super-clean look. WHAT’S INCLUDED • Grille : 1x Mesh Grille Insert • Fascia Cover : 1x Fascia Cover • Light Pods : 2x Backlit NCS SAE Wide Yellow 2Banger pods, 2x Backlit NCS Combo Yellow 2Banger pods • Hardware : 1x 20-24 Center Support Bracket, 4x 20-24 Grille Spacers, Hardware Kit • Wiring : 1x Side Marker Harness, 1x Fuse Tap, 1x Fuse Tap Splitter, 1x Grille Harness, 1x Relay Harness (BAF000H) WARRANTY INFORMATION This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s). This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers. COMPATIBILITY • Toyota 4Runner : 2014-2024* (all trim levels: SR5, Limited, Nightshade, Trail, TRD Sport, TRD Off Road, TRD Pro) • Replaces Toyota Part Numbers : PZ323-35056, PZ327-35053, 52701-35010, 53101-35080 COMPLIANCE Designed to comply with DOT, SAE, and FMVSS108 standards. TECHNICAL SPECIFICATIONS • Intensity : 17,000 Cd (170lux @ 10m) • Peak Luminosity (raw) : 3,600lm • Current : 4.0A @ 13.5V DC • Color : 2400K • Light Source (per pod) : 2x Nichia NCSW131F, 4x CREE XP-E2 PC Amber (Backlight) • Material : ABS Plastic (Grille Insert), Painted ABS Plastic (Fascia Cover), Powdercoated Aluminum (Center Support Bracket), Makrolon LED PC (Pod Lens), Powdercoated Die Cast Aluminum (Pod Housing), Stainless Steel Hardware

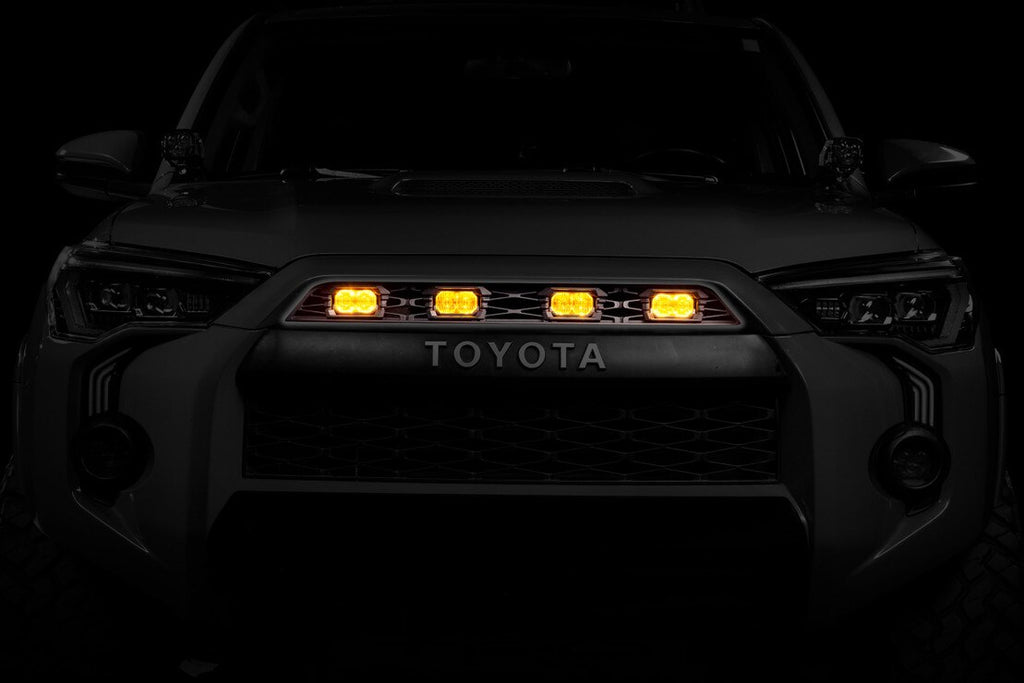

14-24 Toyota 4Runner XBG LED DRL Grille

Code: XBG36

Add Your Review

$789.00

In Stock

Quantity

Item ships direct from vendor.

Add to Wishlist Add to Compare

FREE SHIPPING
*EXCLUSIONS APPLY
FAST
ORDER PROCESSING
HASSLE-FREE
WARRANTY & RETURNS

Installation Guide: Click to download

FEATURES & BENEFITS

• High Vis Backlighting: Integrated dual-intensity amber backlighting for DRL and marker light modes.

• Direct Swap: Carefully designed to replace the stock grille with zero modifications.

• Plug and Play: Included wiring makes for a very easy installation on all trim levels.

• Useful Output: The four included pods in Combo and SAE Wide mode provide useful off-road visibility with a clean look.

• Shaved Fascia Cover: Unique to this grille setup, the fascia cover has no emblem dimples for a super-clean look.

WHAT’S INCLUDED

• Grille : 1x Mesh Grille Insert

• Fascia Cover : 1x Fascia Cover

• Light Pods : 2x Backlit NCS SAE Wide Yellow 2Banger pods, 2x Backlit NCS Combo Yellow 2Banger pods

• Hardware : 1x 20-24 Center Support Bracket, 4x 20-24 Grille Spacers, Hardware Kit

• Wiring : 1x Side Marker Harness, 1x Fuse Tap, 1x Fuse Tap Splitter, 1x Grille Harness, 1x Relay Harness (BAF000H)

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).

This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

COMPATIBILITY

• Toyota 4Runner : 2014-2024* (all trim levels: SR5, Limited, Nightshade, Trail, TRD Sport, TRD Off Road, TRD Pro)

• Replaces Toyota Part Numbers : PZ323-35056, PZ327-35053, 52701-35010, 53101-35080

COMPLIANCE

Designed to comply with DOT, SAE, and FMVSS108 standards.

TECHNICAL SPECIFICATIONS

• Intensity : 17,000 Cd (170lux @ 10m)

• Peak Luminosity (raw) : 3,600lm

• Current : 4.0A @ 13.5V DC

• Color : 2400K

• Light Source (per pod) : 2x Nichia NCSW131F, 4x CREE XP-E2 PC Amber (Backlight)

• Material : ABS Plastic (Grille Insert), Painted ABS Plastic (Fascia Cover), Powdercoated Aluminum (Center Support Bracket), Makrolon LED PC (Pod Lens), Powdercoated Die Cast Aluminum (Pod Housing), Stainless Steel Hardware

A fifth-gen 4Runner first! Four of the popular Morimoto 2Bangers mounted cleanly in a new mesh grille insert and fascia cover, easily wired up with the included plug and play harness. Compatible with all trim levels of the 2014-2024 Toyota 4Runner including the Limited / Nightshade / TRD Sport style bumper! But wait--there's more: these 2Bangers are equipped with dual-intensity amber backlighting as well! The backlight intensity far outshines any cheapo "raptor" style grille lights, and because of that, offer a dim mode for nighttime driving. The main beam of the pods can be triggered with the included push-button switch or via an upfitter switch setup. The kit comes with two yellow Combo and two yellow SAE Wide optics for the best visibility. The included fascia cover looks like the OE TRD Pro style cover, except the added feature of no emblem dimples! FEATURES & BENEFITS • High Vis Backlighting: Integrated dual-intensity amber backlighting for DRL and marker light modes. • Direct Swap: Carefully designed to replace the stock grille with zero modifications. • Plug and Play: Included wiring makes for a very easy installation on all trim levels. • Useful Output: The four included pods in Combo and SAE Wide mode provide useful off-road visibility with a clean look. • Shaved Fascia Cover: Unique to this grille setup, the fascia cover has no emblem dimples for a super-clean look. WHAT’S INCLUDED • Grille : 1x Mesh Grille Insert • Fascia Cover : 1x Fascia Cover • Light Pods : 2x Backlit NCS SAE Wide Yellow 2Banger pods, 2x Backlit NCS Combo Yellow 2Banger pods • Hardware : 1x 20-24 Center Support Bracket, 4x 20-24 Grille Spacers, Hardware Kit • Wiring : 1x Side Marker Harness, 1x Fuse Tap, 1x Fuse Tap Splitter, 1x Grille Harness, 1x Relay Harness (BAF000H) WARRANTY INFORMATION This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s). This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
COMPATIBILITY • Toyota 4Runner : 2014-2024* (all trim levels: SR5, Limited, Nightshade, Trail, TRD Sport, TRD Off Road, TRD Pro) • Replaces Toyota Part Numbers : PZ323-35056, PZ327-35053, 52701-35010, 53101-35080 COMPLIANCE Designed to comply with DOT, SAE, and FMVSS108 standards.
TECHNICAL SPECIFICATIONS • Intensity : 17,000 Cd (170lux @ 10m) • Peak Luminosity (raw) : 3,600lm • Current : 4.0A @ 13.5V DC • Color : 2400K • Light Source (per pod) : 2x Nichia NCSW131F, 4x CREE XP-E2 PC Amber (Backlight) • Material : ABS Plastic (Grille Insert), Painted ABS Plastic (Fascia Cover), Powdercoated Aluminum (Center Support Bracket), Makrolon LED PC (Pod Lens), Powdercoated Die Cast Aluminum (Pod Housing), Stainless Steel Hardware
