2021-2023 Ford F-150 LED Headlights w/ Projector Headlamps

Features

• Dual Bi-LED projectors for maximum output and intensity
• Selectable color, premium Blade DRL
• Modern welcome sequence and sequential turn signal
• Optional adaptive Low Beam Assist and High Beam Boost
• Integrated off-road lighting and show mode (Elite Max)
• Engineered and Assembled in USA - 8 Year Warranty

Overview

Introducing Elite Series LED Headlights compatible with 2021-2023 Ford F-150 w/ Projector Headlamps from Diode Dynamics! These headlights were designed for maximum performance, and they are the only aftermarket headlights for the F-150 that are 100% engineered and assembled in the USA!

With OEM-grade quality, the Elite Series headlights will add a sequential turn signal, welcome sequence, a brighter blade DRL with selectable color, and optional offroad lighting and show mode. Plus, you’ll get upgraded headlight performance and output, backed by an 8-year warranty.

Maximum Light Output.The Elite Series LED Headlights provide full LED illumination for both low beam and high beam function, with the modern, rectangular bi-LED projector. This unit provides higher intensity than both the OEM halogen and LED options, shining light far down the road ahead. The beam pattern has a sharp cutoff, with excellent center intensity and strong width, for a fantastic nighttime driving experience. The same projector is installed on both the Elite and Elite Max models.

Selectable DRL - On the Fly. These headlights feature a selectable DRL, to customize the look of your F-150. With up to four distinct DRL modes, you can choose white and amber colors, and enable or disable the extra DRL bars (if equipped). No need to pop the hood. Our patent-pending technology allows you to program your headlights from inside the vehicle, using existing controls.

Features & Benefits

• Dual Bi-LED projectors for maximum output and intensity
• Selectable color premium Blade DRL
• Modern welcome sequence and sequential turn signal
• Integrated off-road lighting and show mode (Elite Max)
• Engineered and Assembled in USA

What's Included

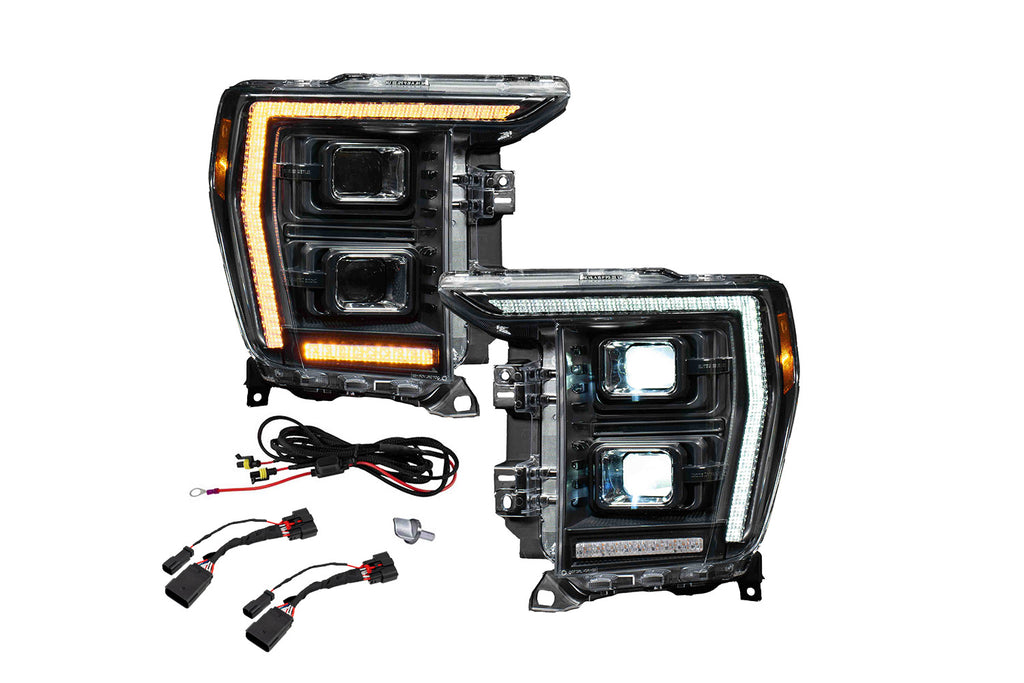

• Included in the box: Two (2) Ford F-150 Elite Headlamps Two (2) Plug-and-Play Harnesses Two (2) Molex Sealing Plugs One (1) Adjuster Tool Installation Guide
• Warranty: 8 Year

Specification

• Adaptive Headlight: No
• Adaptive High Beam: No
• Add-On: N/A
• Adjusting Screw Included: Yes
• Amperage Rating: 3.986
• Ballast Included: No
• Beam Type: High Beam Low Beam
• Bezel Color: Black
• Bulb Finish: Clear
• Bulb Technology: LED
• Bulbs Included: Yes
• Color Temp: 6000K
• DOT Approved: Yes
• Emergency Warning Lights Included: No
• Grade Type: Regular
• Headlight Type: Assembly
• Housing Color: Black
• Input Power (watts): Low Beam: 30 High Beam: 43 Offroad: 61
• Intensity (lux): Low Beam: 89100 High Beam: 106200 Offroad: 102150
• Intrusion Rating: IP67 Weatherproof
• Lens Color: Clear
• Low Beam Bulb Technology: LED
• Measured Output (lumens): Low Beam: 665 High Beam: 1210 Offroad: 1720
• Mounting Hardware Included: No
• Operating temperature: -40C to 85C (-40F to 185F)
• Operating Voltag: 9-16V
• Prop 65 Yes/No: Yes
• Turn Signal Included: Yes
• Universal Or Specific Fit: Specific
• Voltage: 9-16V

Application

• Application: Headlight
• Make: Ford
• Model: F-150
• Years: [2021, 2022, 2023]
