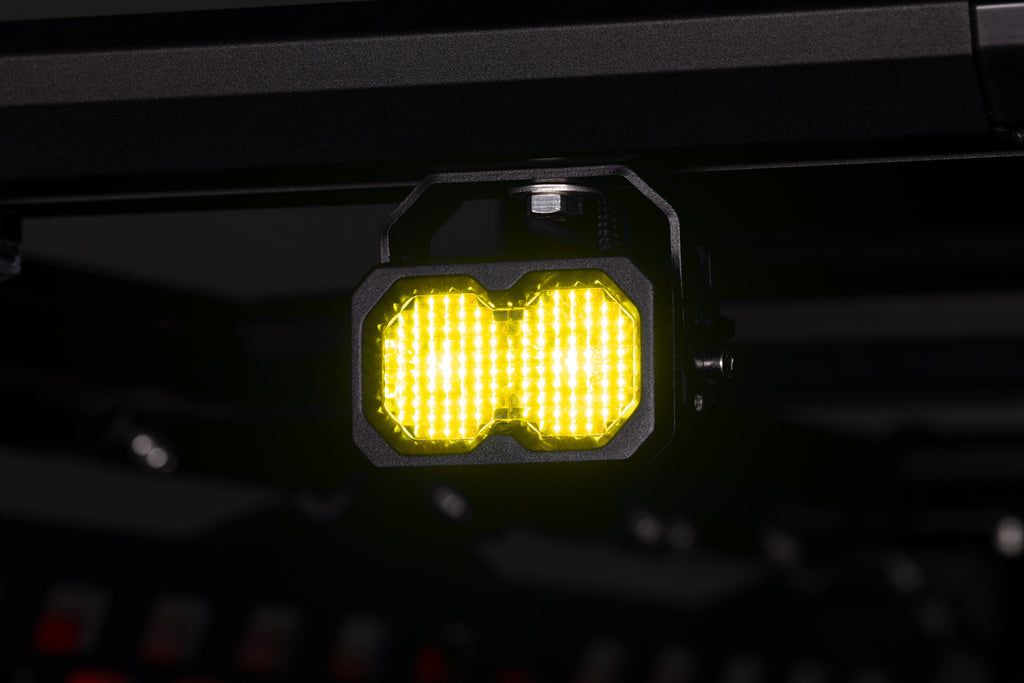

Stage Series LED Chase Light Kit for Kuat IBEX Bed Rack Diode Dynamics

Stay visible on the trail even in dust, fog, or low light, with the Stage Series LED Chase Light Kit for the Kuat IBEX Bed Rack. This bolt-on solution allows you to mount two of our all-new C2 2.0 LED Pods to the rear crossbar of the IBEX rack, providing a powerful rear-facing chase light. With a high-power yellow main beam and low-power red running light, this chase light kit ensures you’re seen when it matters most.

Next-Gen Performance. The C2 2.0 LED pod represents the next step in compact LED lighting, delivering big performance in a small package. Whether you're out on a dusty trail or stopped at a campsite, these LED Pods cut through haze with a powerful yellow flood beam pattern, ensuring your vehicle stands out to anyone behind you.

Red Running Light. The LED pods included in this kit feature a distinctive red backlight, which can be used as a running light while driving or additional scene lighting when stopped on the trail. The backlight fully illuminates the TIR optic, providing a more unique look than others on the market.

Bolt-On Installation. This kit was purpose-built to integrate seamlessly with the Kuat IBEX bed rack, using the rear crossbar for a clean, factory-style fit. Every detail, from bracket alignment to wiring accommodations, was designed to complement the rack’s design without modification.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing.

Features:

• Stage Series LED Chase Light Kit for Kuat IBEX Bed Rack
• Allows you to mount two C2 2.0 LED Pods to the rear of the IBEX Bed Rack
• Adds a high-power yellow chase light, and low-power red running light
• Seamlessly integrates with the crossbars for simple installation
• Engineered and Assembled in USA.

Included in the box:

• Two (2) Stage Series C2 2.0 LED Pods
• One (1) Heavy Duty Single Output 3-way 4-pin Wiring Harness
• One (1) Dual Output Extension Harness
• Six (6) Zip Ties
• Wire Retention Strip
• Mounting Hardware
• Installation guide

Specs:

• Color Temp (CCT): 3000K
• Beam Angle: Flood, 70x45 Degrees
• Power (watts): Main Beam: 15, Backlight: 0.38
• Operating Voltage: 9-30V
• Current (amps at 12.8V): Main Beam: 1.17, Backlight: 0.03
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Lumileds Altilon Intense
• Connector(s): Deutsch DT Input
• Driver Features: Constant Current
• Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
• Cooling: Passive, Pin-Fin heatsink
• Compliance Ratings: SAE J575 Durability Test
• Intrusion Ratings: IP67 Weatherproof
